Nuscenes visualize

https://github.com/pyaf/nuscenes_viz

GitHub - pyaf/nuscenes_viz: A tool to visualize nuscenes format dataset in 3D using mayavi



mayavi based 3D visualization tool for Nuscenes dataset.



Requirements

$pip install -U lyft_dataset_sdk
$pip install vtk==8.1.2
$pip install mayavi
$pip install PyQt5



Data

Nuscenes dataset 이용.

./dataroot 내부에 maps, samples, sweeps, data(==v1.0-mini) 넣음.



Run

#한 sample만 보기(한 frame)
$python lyft_viz.py -d ./dataroot/ --sample [sample_token]

#scene 단위로 보기(key 입력 시 다음 frame으로 넘어감)
$python lyft_viz.py -d ./dataroot/ --scene [scene_token]

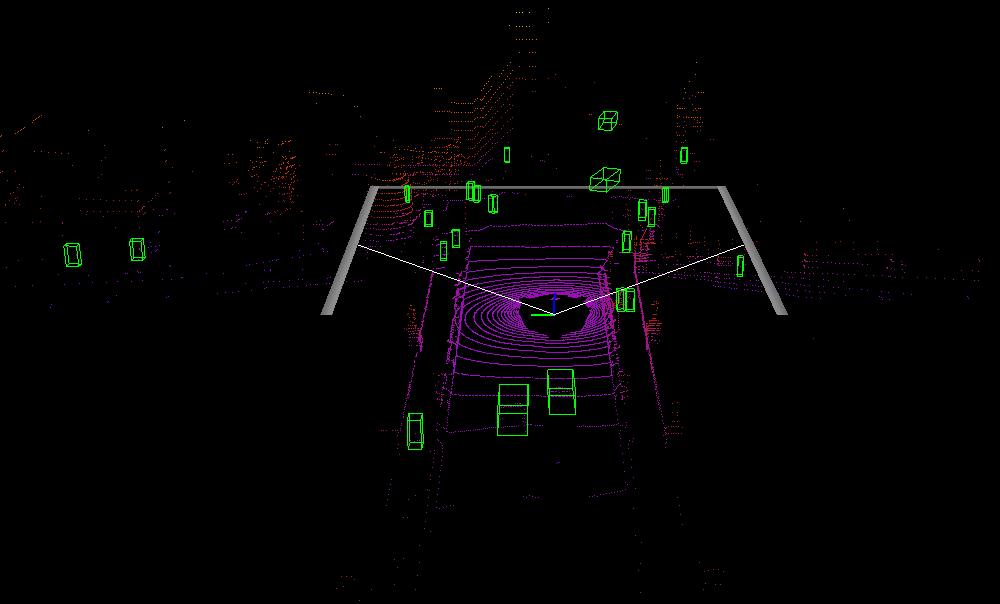

Result

---

#nuscenes visualize with matplotlib

from nuscenes.nuscenes import NuScenes
nusc = NuScenes(version='v1.0-mini', dataroot='data/', verbose=True)

first_sample_token = '3e8750f331d7499e9b5123e9eb70f2e2'
my_sample = nusc.get('sample', first_sample_token)

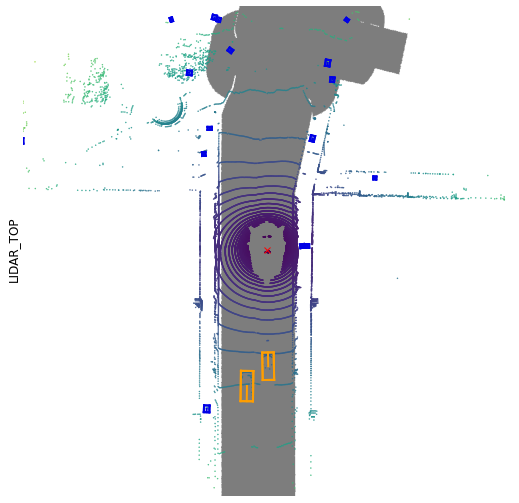

#draw lidar_top
nusc.render_sample_data(my_sample['data']['LIDAR_TOP'], nsweeps=5, underlay_map=True)

#draw image

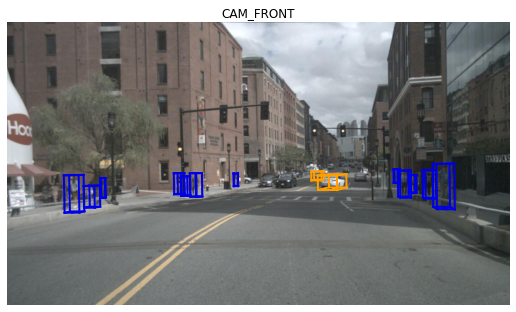

nusc.render_sample_data(my_sample['data']['CAM_FRONT'])

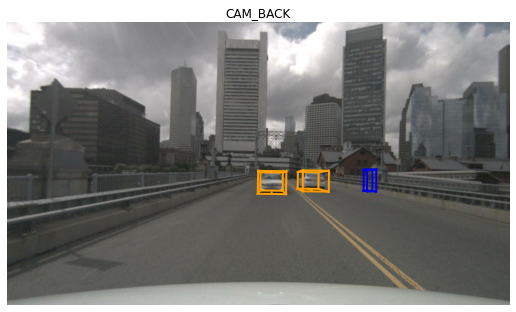

nusc.render_sample_data(my_sample['data']['CAM_BACK'])
